The Guardians of the High-Speed Rail’s “Aerial Expressway”—Composite railway Insulators or polymer railway insulators or silicone rubber railway insulators

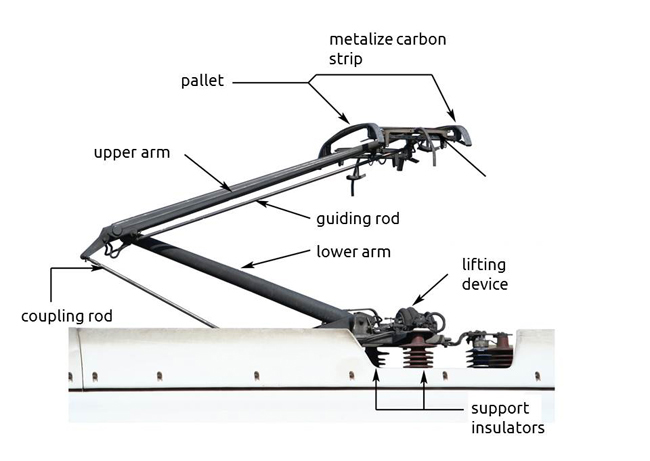

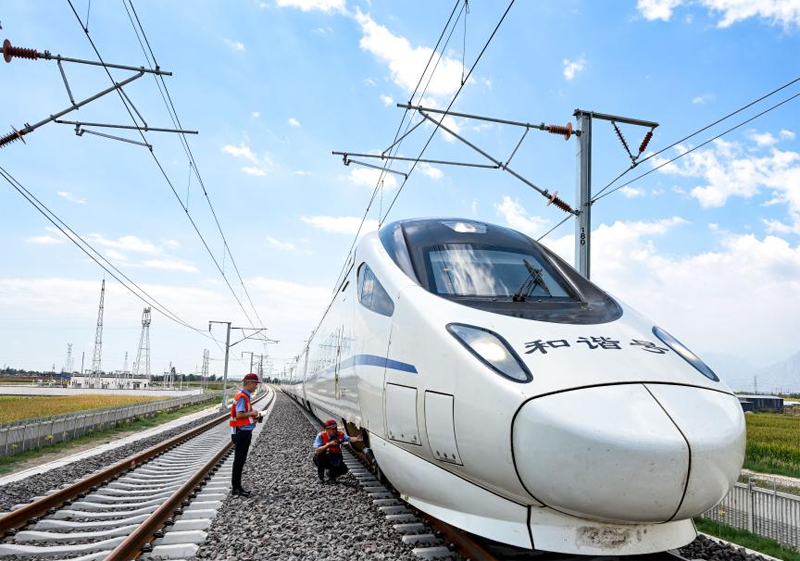

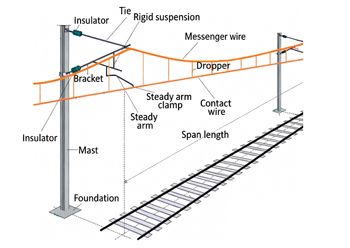

The high-speed rail’s operation relies on the overhead “aerial expressway”—the catenary power supply system—that continuously supplies it with electricity. This system mainly consists of contact wires, catenary cables, supporting structures, and insulating components erected along the railway line. Electricity is output from the traction substation and transmitted directly to the pantograph on top of the train via the contact wire, continuously transferring power to the train.

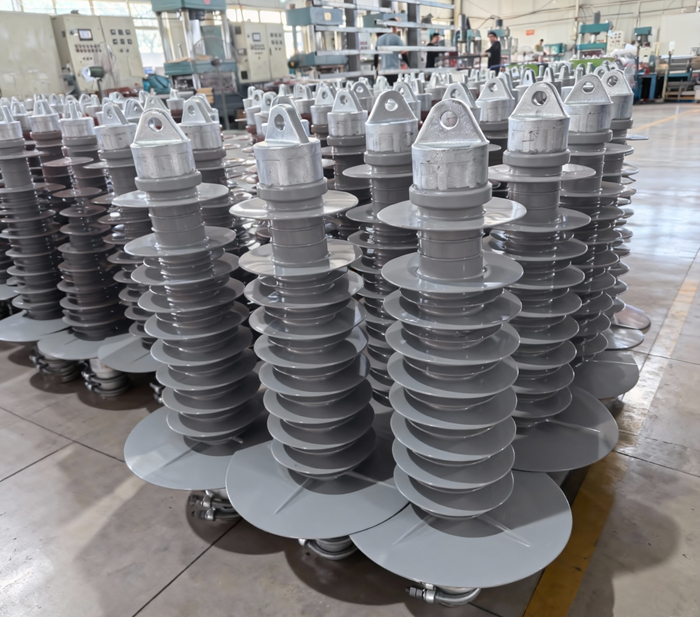

In this sophisticated system, composite railway insulators or polymer railway insulators play a crucial role, key to ensuring safe and stable power supply. They primarily perform three functions:
Electrical Insulation: Their core function is to withstand the catenary’s operating voltage of up to 27.5 kV and ensure effective isolation of live parts from the grounding support structure under any weather conditions, preventing current leakage and short-circuit accidents.
Mechanical Support: Composite silicone rubber insulators possess extremely high mechanical strength, enabling them to firmly suspend the heavy contact wires and catenary cables, withstand continuous dynamic impacts from the pantograph, wind loads, and their own weight, ensuring the geometric stability of the catenary.
Environmental Adaptability: Compared to traditional porcelain insulators, it is made of silicone rubber composite material, possessing excellent hydrophobicity, anti-flashover capability, and corrosion resistance. This allows it to effectively prevent the formation of a continuous water film on the surface, thus preventing leakage, in harsh environments such as rain, snow, fog, and salt spray, greatly improving system reliability and reducing maintenance requirements.
It is precisely because of these superior properties that composite railway insulators silently safeguard the “aerial passage” of the high-speed rail catenary, becoming an indispensable “unsung hero” ensuring the safe, efficient, and stable operation of China’s or world wide high-speed rail.
