Line Post Insulator

Composite Line Post Insulators:

Voltage: 10kv-220kv

Direction: Horizontal or vertical mounted

Material: HTV silicone rubber, ECR fiber glass core rod

Type: Tie top or clamp top

Strength: 2kN-45kN

Send E-mail Inquiry Now

Introduction:

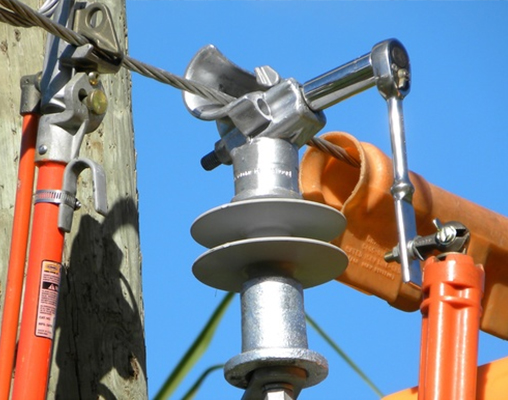

In distribution lines, composite tie top line post insulators are the same as composite pin type insulators, also can be named polymer line post insulators or silicone rubber line post insulators. The base fitting is the cap which assemble with the crossarm by steel studs. The head fitting can be steel type, or HDPE type, nylon type or silicone rubber covered types.

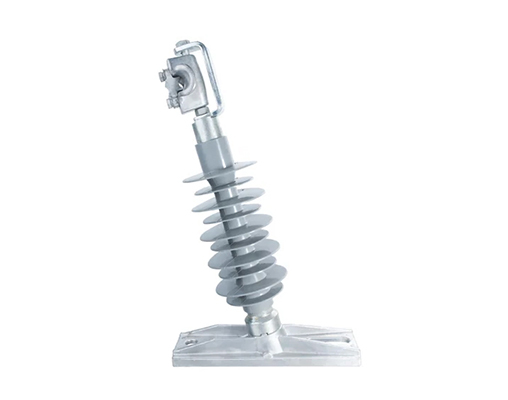

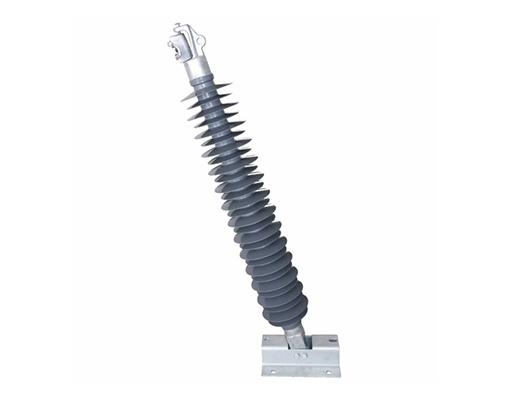

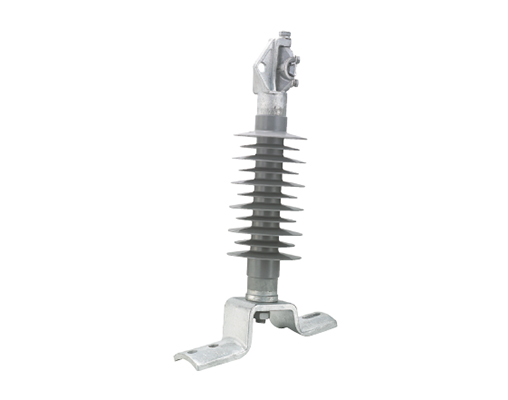

Composite line post insulators with clamps can hold the conductors directly, which can be mounted vertically or horizontally. The clamps can be steel or aluminum alloy materials. The base fitting can be caps or gain fittings.

Rated Voltage: 10kv to 220kv Top Fitting: Vertical or horizontal clamptop or blade style end fitting Base Fitting: Detachable gain base uesed on round poles or detachable flat base or cap base Standard: ANSI C29.11, ANSI C29.17, ANSI C29.18, IEC 61952, IEC62217

Parameter:

Important parameter: (if you want to enquire, the following must be provided)

Section Length If Have Neck Diameter If Tie Top Line Post Creepage Distance Dry Acring Distance Cantilever Strength Which Decide The Fiber Glass Core Size End Fitting Type
