Insulator creepage diantance

2023-12-05 14:36:48

Insulator creepage distance is an important concept in the field of electrical engineering. It refers to the distance between two conductive surfaces that are insulated from each other, and it is used to prevent the flow of electric current between these surfaces.

The purpose of insulator creepage distance is to ensure that there is no unintended flow of electric current between two conductive surfaces. This can occur if the insulation between the surfaces is compromised, such as by a breakdown or a fault. By maintaining a safe creepage distance, the risk of electrical shock or fire is greatly reduced.

The creepage distance required depends on a number of factors, including the voltage level, the type of insulation, and the environmental conditions. For example, higher voltage levels require greater creepage distances to prevent the risk of arcing or flashover.

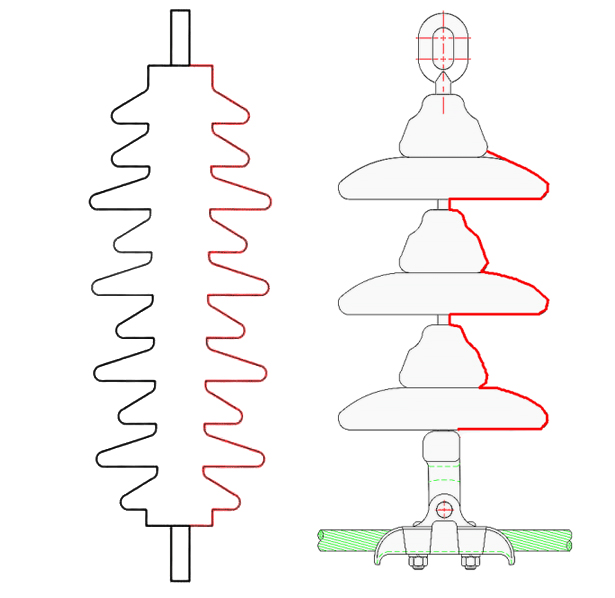

creepage distance

To calculate the creepage distance, engineers use a formula that takes into account the height and dielectric strength of the insulation. The formula also considers any surface irregularities or contaminants that may affect the insulation performance.

In addition to calculating the creepage distance, engineers must also ensure that it is maintained during installation and operation. This includes regular inspections and cleaning to remove any dirt or debris that may accumulate on the insulation.

Overall, insulator creepage distance is a critical aspect of electrical safety and reliability. By properly calculating and maintaining this distance, engineers can help to prevent electrical accidents and ensure that electrical systems operate safely and efficiently.
