Porcelain post insulator TR210

2024-02-26 15:10:28

TR210 is one type of porcelain post insulators, which are critical components in electrical power systems. Porcelain post insulators play a vital role in maintaining the safe and efficient flow of electricity by providing electricalinsulation and mechanical support to conductors such as power lines. Made from high-quality porcelain, these insulators offer superior performance in a variety of environmental conditions.

The TR210 porcelain post insulator is designed for use in substation or switchgear, where it helps to isolate the conductor from the supporting structure. This prevents current from flowing through the structure, which could lead to corrosion and potential failure of the system. The insulator TR210 also helps to reduce electrical losses due to its low leakage current.

Porcelain material is an ideal material for insulators because of its excellent dielectric strength, resistance to weathering, and ability to withstand high temperatures. It is also non-porous, which means that it does not absorb water, ensuring consistent performance even in wet or humid conditions. Additionally, porcelain has a low coefficient of thermal expansion, making it resistant to thermal shock and ensuring that it maintains its structural integrity under varying temperature conditions.

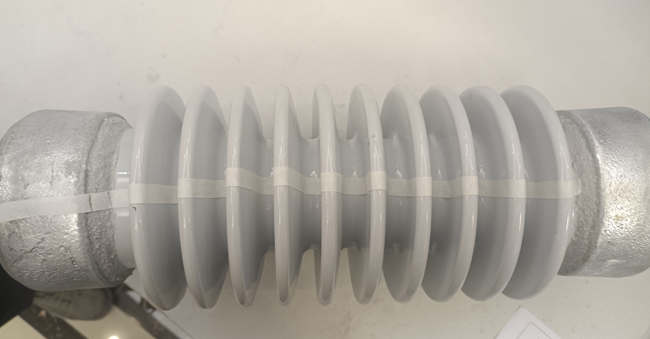

The TR210 porcelain post insulator typically features caps at the top and the bottom, with more sheds along the length of the insulator. The sheds are designed to shed water and contaminants, further improving the insulator’s performance in adverse weather conditions. The caps are made of metal, usually steel, which provides a strong attachment point for the conductor and supporting structure.

In terms of installation, porcelain post insulators like the TR210 are relatively easy to install and maintain. They can be mounted using bolts. Maintenance for these insulators primarily involves visual inspection for signs of damage or wear, as well as periodic cleaning to remove dirt and other contaminants.

Overall, the TR210 porcelain post insulator is a reliable and durable component for electrical power systems, offering excellent insulation properties and mechanical support for power system. Its porcelain construction ensures long-lasting performance and minimal maintenance requirements, making it a cost-effective solution for ensuring the safe and efficient transmission of electricity.
